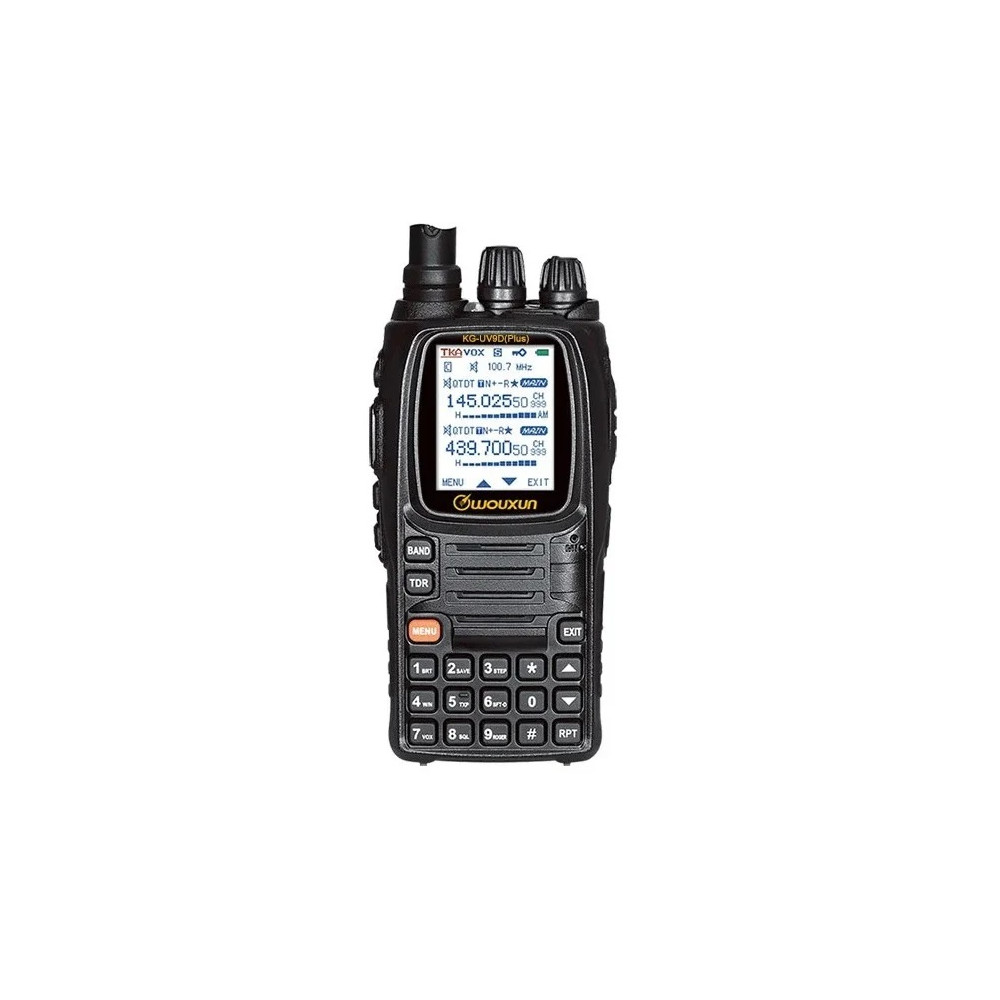

Walkie VHF/UHF bibanda Wouxun KG-UV9P (3200mAh) Ver más grande

Walkie VHF/UHF bibanda Wouxun KG-UV9P (3200mAh)

Portatil bibanda VHF/UHF con 1000 memorias alfanumericas y 5 W de potencia

Batería 3200mAh

Más detalles

Solicitar más información acerca del producto

Walkie VHF/UHF bibanda Wouxun KG-UV9P (3200mAh)

Walkie VHF/UHF bibanda Wouxun KG-UV9P (3200mAh)

CARACTERISTICAS

Portatil doble banda VHF-UHF
Frecuencias de trabajo 144-430 Mhz
FULL-DUPLEX
Radio FM
DCS y CTCSS
1000 memorias alfanuméricas
Bateria de Lithio de alta capacidad
Amplia cobertura en recepción

Accesorios incluidos en la caja :

1 Cargador individual inteligente · 1 Batería de litio de 3200 mAh · 1 Clip de cinturón. · 2 Antenas para wouxun KG-UV9D con mejor recepcion · 1 manual en castellano

Dual Bands Transmission , Seven Bands Reception , Two Way Radio KG-UV9D





kg-uv9p
main function Seven Bands Reception and Dual Bands Transmission
Wider frequency ranges meet different demands. The frequency range is from 76MHz to 965MHz , including FM radio and air band
main function Classic Circuit , Excellent Performance
Mature circuit design and high quality electronic components, after years of use can still maintain
stable performance
main function Using High Quality Plastic and Rubber Material
High quality plastic can make the shell more robust and durable good rubber material can make
the button has a good touch feel
main function Multi Scanning Mode and Channel Groups Scanning
Scanning on limiting frequency , scanning on self-definition frequency range , scanning on
channel groups , you can find channel or frequency more quickly

MORE FUNCTIONS
  main function Dual Receiving
main function Duplex Work on A&B Areas
(TX on one area while RX on the other area simultaneously)
main function RX on the same/different bands of A&B areas simultaneously
main function Simultaneously Scanning on Twin Band,
main function Memory Channels 999
main function QT/DQT Encoding/Decoding,QT/DQT Scan
main function Non-Standard CTCSS can be set arbitrarily
main function VOX and SOS function
main function Multi Definition for Sidekeys
main function Reverse Frequency
main function Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)		 main function mplitude-frequency PTT settings
main function ncoming Message Display Caller ID display
main function DTMF Encoding&Decoding
main function All Calls,Group Calls And Selective Calls
main function PriorRemote Alarmity Scan Function
main function Voice Guide:Chinese/English
main function Chinese/English Screen Display
main function English Channel Name Edit
main function Bright Flashlight illumination
main function Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz
main function Stopwatch
main function Superheterodyne Receiver Type

TECHNICAL SPECIFICATION
Intergration
   Frequency Range

   suitable for different countries or areas

   1 TX: 136-174MHZ(FM)
              400-512MHZ(FM)
    2 RX: 76-108MHZ(FM)
             108-136MHZ(air ground)
             136-180MHZ(FM)
             230-250MHZ(FM)
             350-400MHZ(FM)
             400-512MHZ(FM)
             700-985MHZ(FM)
   Step 2.5K/5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
   Channel Number 999
   Work Mode F2D/F3E
   Operating Temperature -20℃～+40℃
   Voltage 7.4VDC
   Antenna Impedance 50Ω
   Weight 490 g
   Size 123 x 58 x 31 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity 08-136MHz(AM) -106.0dbm SN 13dB
136-180MHz -119.0dbm SINAD 13dB
230-250MHz -116.0dbm SINAD 13dB
350-400MHz -119.0dbm SINAD 13dB
400-512MHz -119.0dbm SINAD 13dB
700-986MHz -96.0dbm SINAD 12dB

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF H:5W , M:2W , L:1W
VHF H:4W , M:2W , L:1W



176,66 € (iva incluido)
