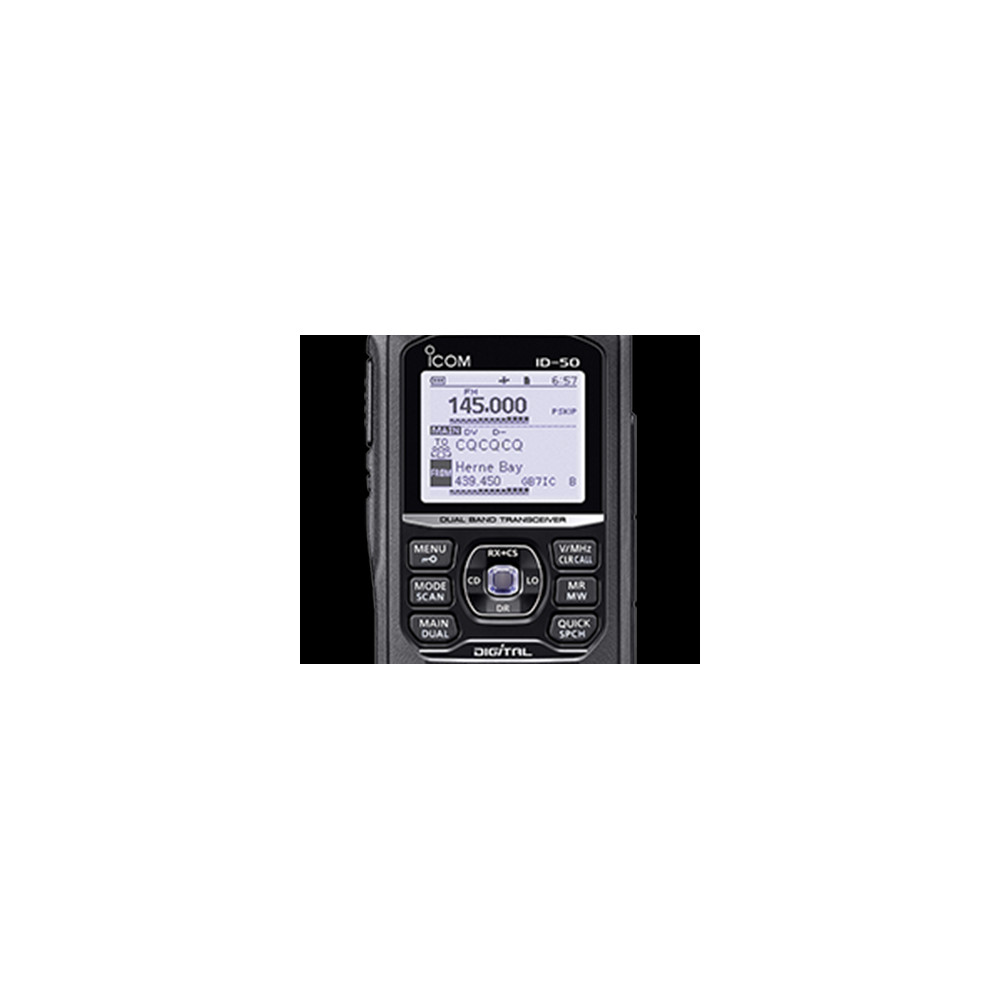

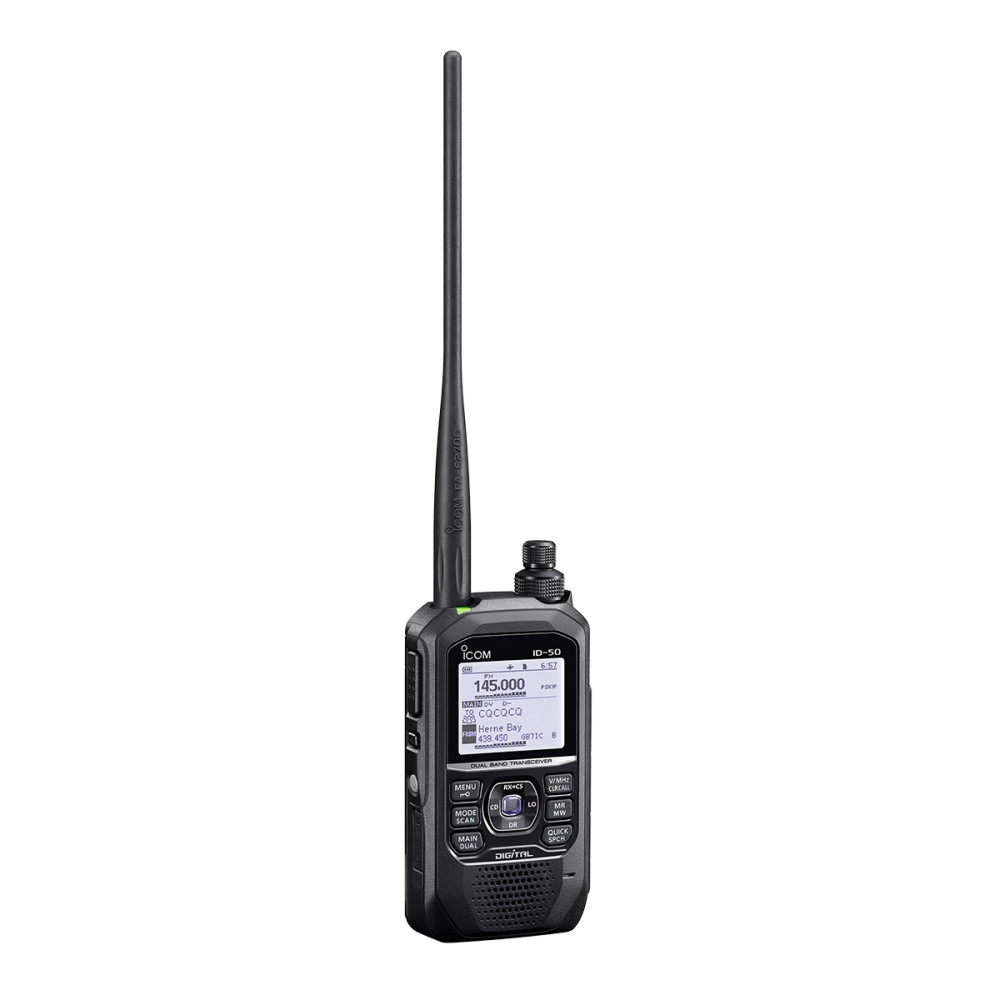

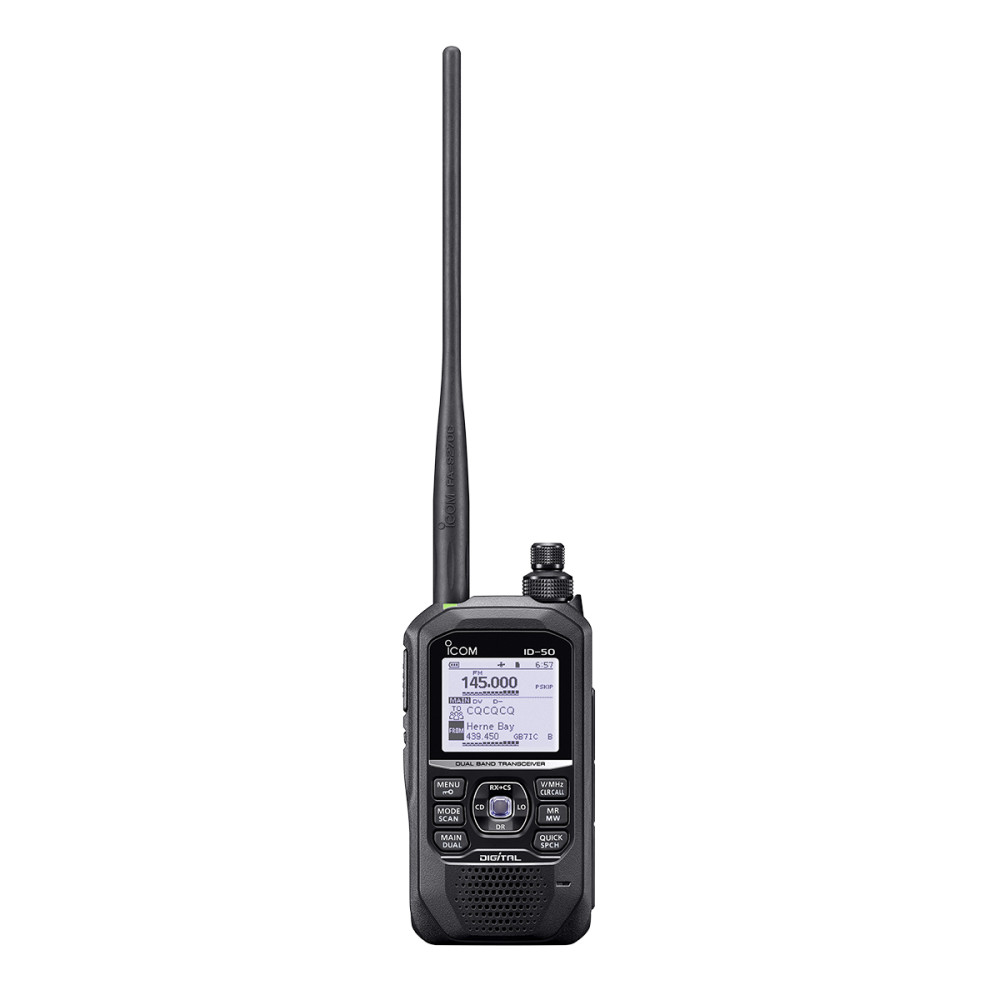

Walkie VHF/UHF bibanda Icom ID-50E D-STAR

Cobertura

Versión

Transmit

Receiver

Broadcast band

ID-50E

144~146, 430~440

(A) 108~174, 375~479*
(B) 137~174, 375~479*

76.00~108.00

(A) means A band, (B) means B band. Guaranteed Range: * 144~146, 430~440 MHz

Tipo de emisión

F2D, F3E, F7W

Modo

DV, FM, FM-N, WFM, AM, AM-N

Memorias

500 memorias canales, 4 call channels, 25 scan edges,
100 skip channels, 500 broadcast stations, 2500 repeater lists, 300 call signs, and 300 GPS memories

Salto de frecuencias

5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100, 125 and 200 kHz

Temperatura

–20℃ ~ +60℃, –4°F ~ +140°F

±2.5 ppm (–20℃ ~ +60℃ on the basis of 25℃)

Impedancia de antena 50 Ohm

50 Ω (SMA)

Alimentación

Batería

7.4 V DC (con BP-271/BP-272)

Pilas alcalinas

5.5 V DC (con BP-273)

External DC

10–16 V DC

Current drain
(at 7.4 V DC)

Tx High

Less than 2.5 A

Rx AF Max.

Less than 400 mA (FM, FM–N) (8 Ω),
Less than 450 mA (DV) (8 Ω)

Dimensiones (W×H×D)
(projections not incluida)

61.1 × 121.6 × 29.7 mm,
2.4 × 4.8 × 1.2 in (projections are not included)

Peso (aprox.)

300 g, 10.6 oz (with BP-272 & antena)

Sistema modulación

DV

GMSK reactance modulación

FM, FM-N

FM reactancia modulación

Potencia máxima

5 W, 2.5 W, 1.0 W, 0.5 W, 0.1 W
(High, Mid, Low2, Low1, S-low)

Spurious emissions

Less than –60 dBc (High, Mid),
Less than –13 dBm (Low2, Low1, S-low)

Max. desviación de frecuencia

Less than ±5.0/2.5 kHz (FM/FM-N)

Ext. Mic impedancia

2.2 kΩ

Sensibilidad

DV

Less than 0.2 μV (at 1% BER)

FM, FM-N

Less than 0.18 μV (at 12 dB SINAD)

Selectividad

More than 50 dB (DV, FM-N), More than 55 dB (FM)

Spurious rejection

More than 60 dB

Audio output power

Internal SP

More than 750 mW (8 Ω load)

External SP

More than 200 mW (8 Ω load)

Receiver sensitivity (Except amateur bands.)

Frecuencia rango
(Unit: MHz)

FM/FM-N/WFM （12 dB SINAD）

AM/AM-N
（10 dB S/N）

BC band

76.000~108.000

Less than 1 μV (WFM)

-

A band

108.000~136.991

-

Less than 1 μV

137.000~142.000

Less than 0.18 μV

Less than 1 μV

142.005~148.000

Less than 0.18 μV

-

148.005~174.000

Less than 0.32 μV

-

375.000~399.995

Less than 0.5 μV

-

400.000~479.000

Less than 0.32 μV

-

B band

137.000~142.000

Less than 0.18 μV

-

142.005~148.000

Less than 0.18 μV

-

148.005~174.000

Less than 0.32 μV

-

375.000~399.995

Less than 0.5 μV

-

400.000~479.000

Less than 0.32 μV
